Optical Transceiver

• Application
• Data center, Telecommunication, Enterprise networking, Storage, Switches, Routers

• Capacity
• Supports 1Gbps, 10Gbps, 40Gbps depending on module

• Connectivity Type
• Optical/LC Duplex, MPO

• Coverage Area
• Up to 100m (SR), 10km-80km (LR/ZR), 100km (ER) depends on type

• Dimension (L*W*H)
• SFP: 56.5 x 13.7 x 8.5 mm; SFP+: 56.5 x 13.7 x 8.5 mm; QSFP+: 72 x 18.35 x 8.5 mm

• Features
• Hot-pluggable, low power consumption, digital diagnostic monitoring

• Frequency
• Optical 850nm, 1310nm, 1550nm (wavelengths depend on model)

• Interface Type
• SFP, SFP+, QSFP+

• Material
• Metal and high-grade plastic casing

• Model
• SFP, SFP+, QSFP+

• Mounting Type
• Pluggable Module

• Operating Temperature
• 0C to 70C (Standard); -40C to 85C (Industrial)

• Power Supply
• 3.3V DC

• Product Type
• SFP, SFP+, QSFP+ Optical Transceiver Modules

• Range
• Up to 100km (depends on transceiver version)

• Shelf Life
• 10 years

• Size
• SFP: 56.5 x 13.7 x 8.5 mm; SFP+: 56.5 x 13.7 x 8.5 mm; QSFP+: 72 x 18.35 x 8.5 mm

• Weight
• SFP/SFP+: approx 20g; QSFP+: approx 36g

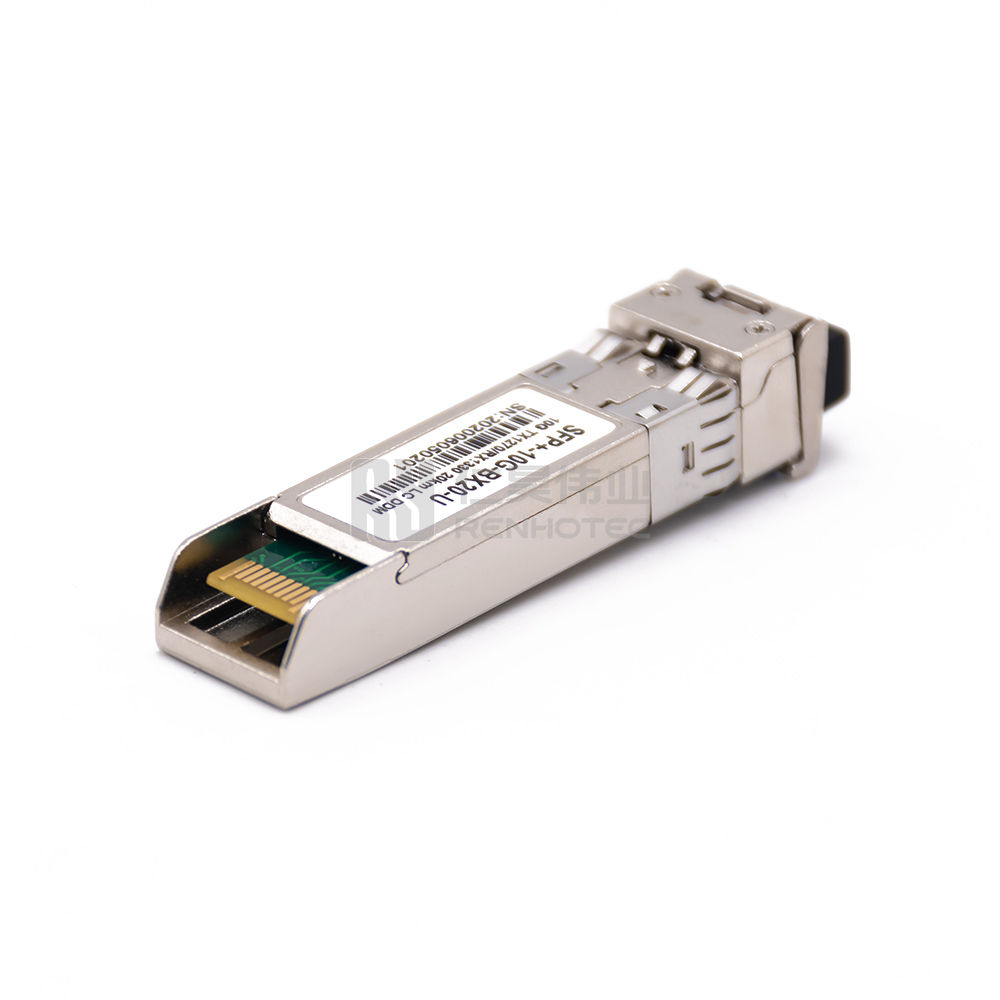

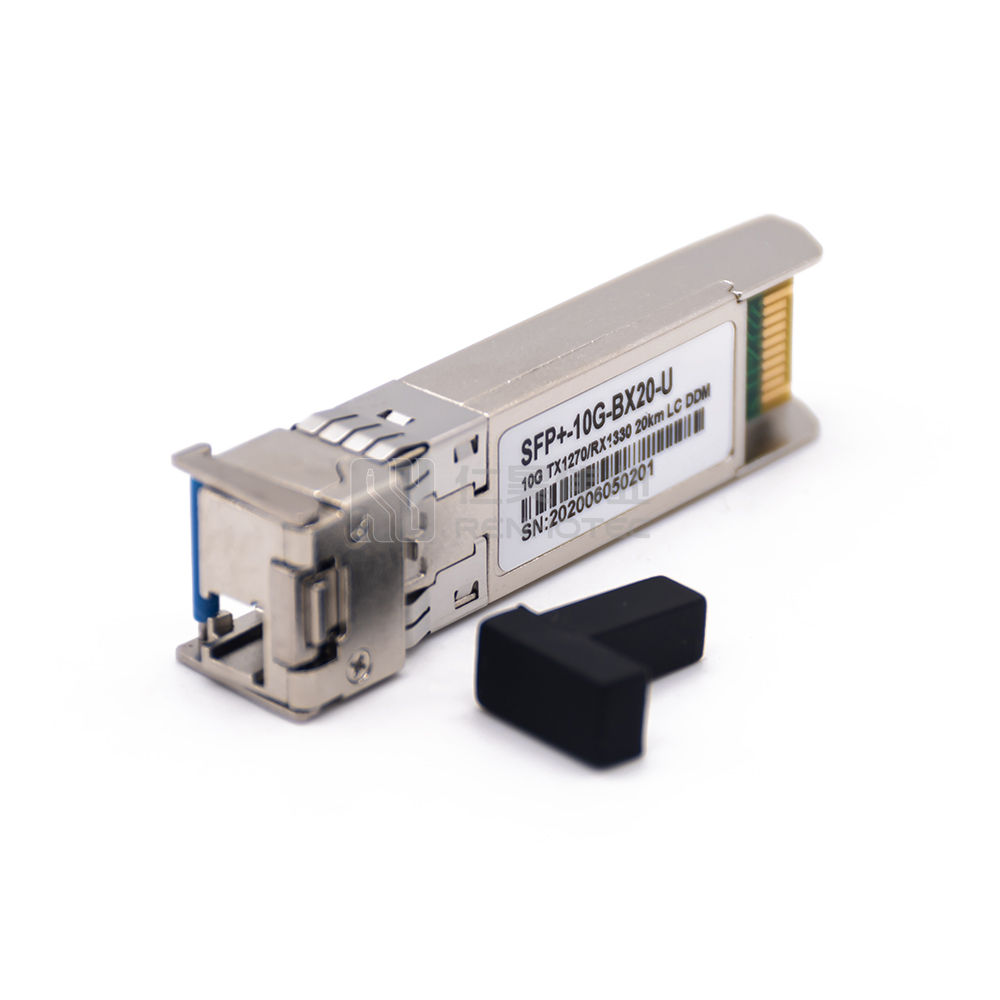

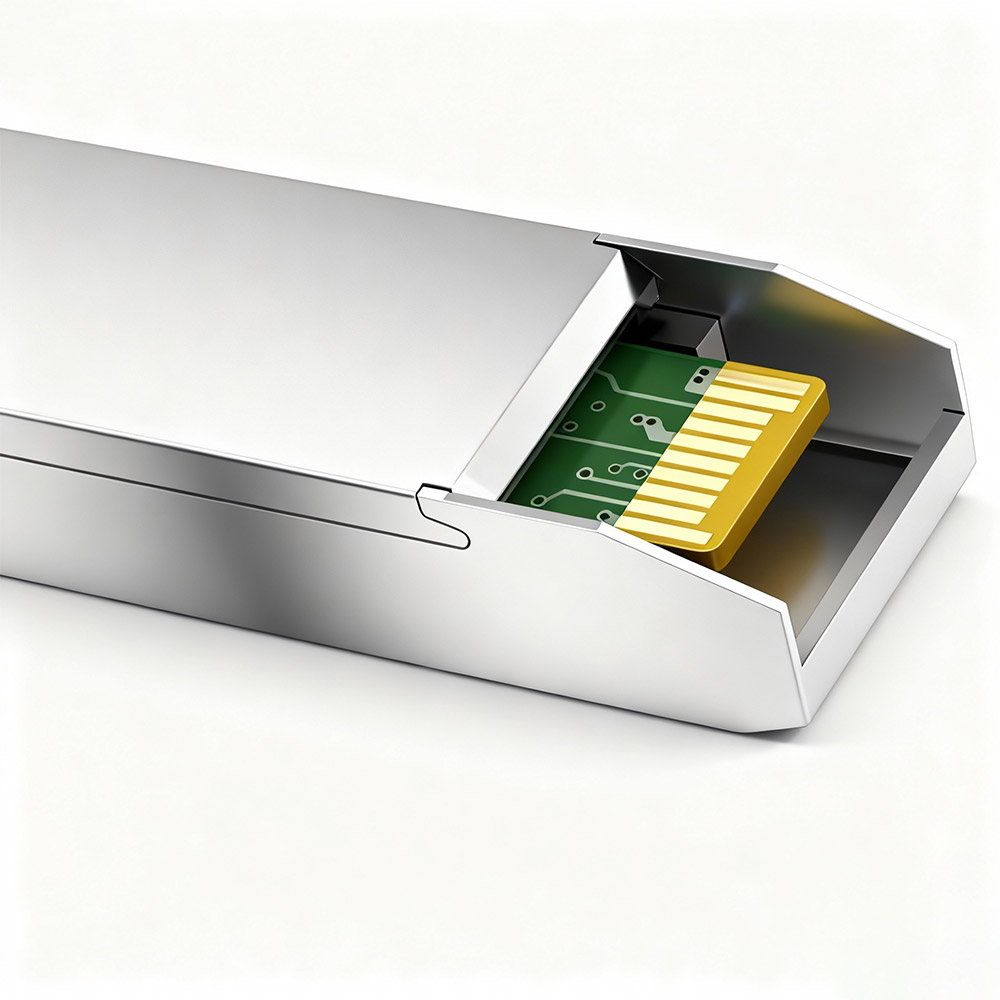

• Application
• 10GBASE-BX

• Connectivity Type
• lc connector

• Coverage Area
• 20 Square Centimeter (cm2)

• Dimension (L*W*H)
• 56.5x13.4 Millimeter (mm)

• Features
• BIDI technology over single strand hot pluged

• Interface Type
• SFP+ interface slot

• Material
• metal enclosure

• Model
• SFP-10GB-BX20-U

• Product Type
• SFP+optical transceiver

• Range
• tx 1270nm

• Shelf Life
• not applicable Hours

• Size
• small from factor

• Usage & Applications
• high speed data transfer and data center

• Weight
• 20 Grams (g)

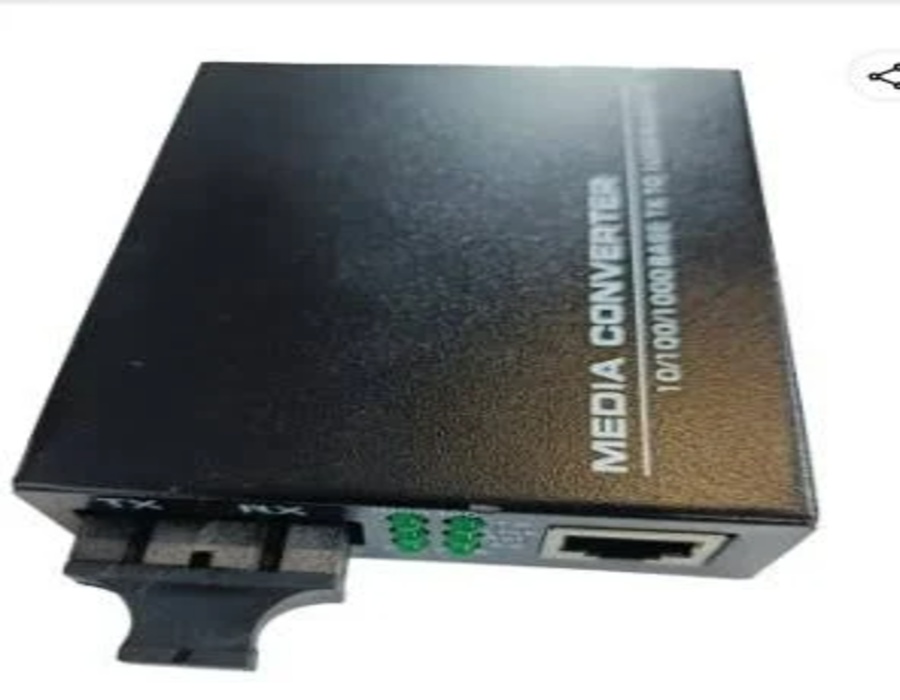

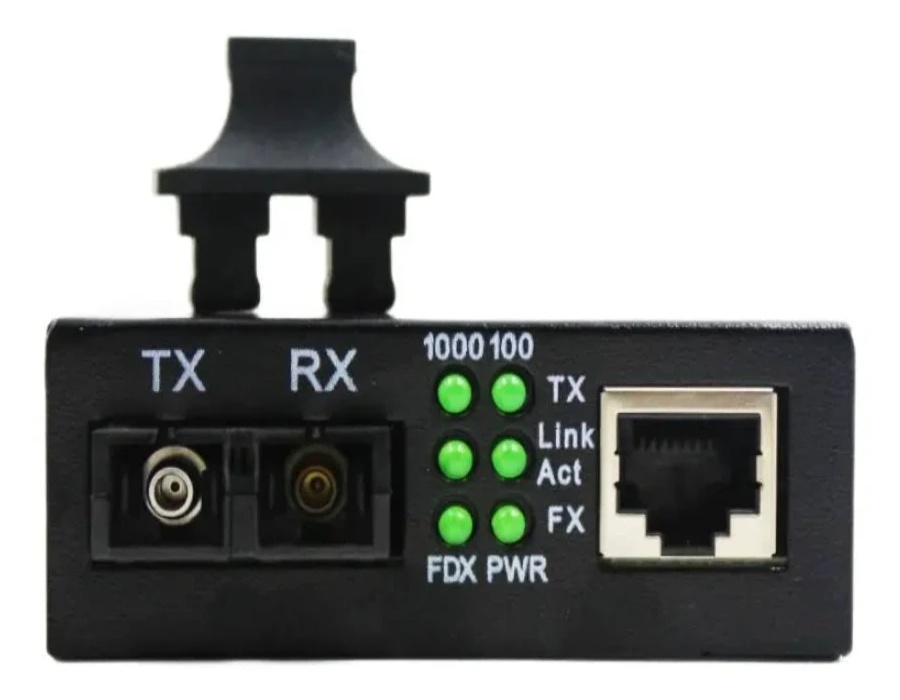

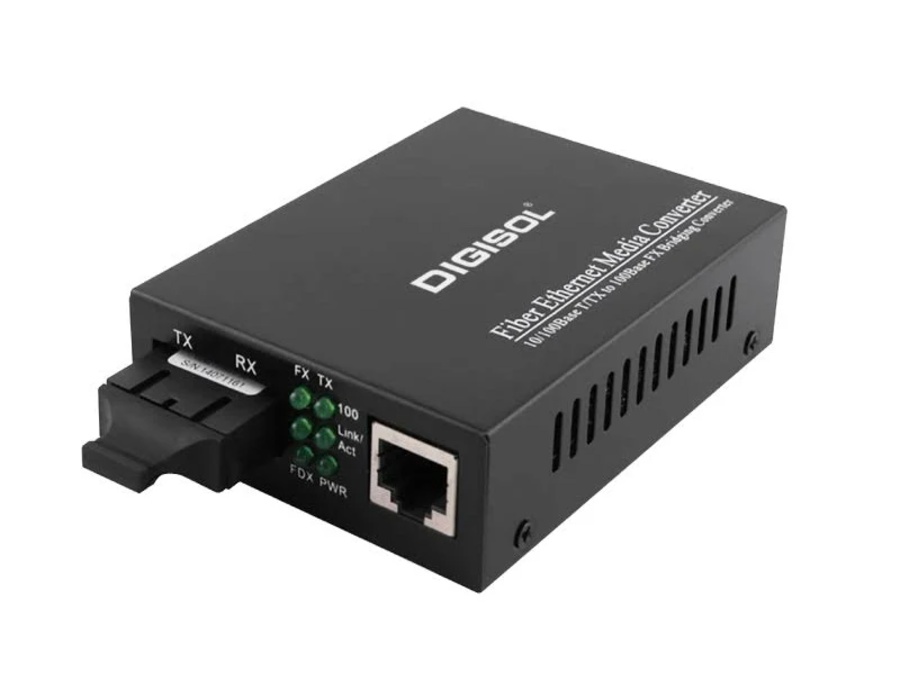

• Application
• Optical Fiber communication telecommunication

• Connectivity Type
• wired ethernet to fiber optic

• Dimension (L*W*H)
• 94x70x26 Millimeter (mm)

• Features
• 10 100 1000 mbps auto plug and play installation

• Interface Type
• 1 xrj45 copper port 10 100 1000 x dual fiber sc optic port

• Material
• metal body

• Model
• FX5113-DG-20

• Mounting Type
• desktop wall mounted

• Operating Temperature
• -10 to +55 Celsius (oC)

• Product Type
• fiber optic media convertor

• Range
• 20km

• Size
• compact desktop size

• Usage & Applications
• extend Ethernet networks up 20 km using single mode dual fiber optic cabling

• Weight
• 0.4 Grams (g)

• Application
• Data transmission over long distances via single-mode fiber, LAN/WAN networks, CCTV, IP camera, and VoIP applications

• Capacity
• Supports 100M/1000M Ethernet

• Connectivity Type
• Single Fiber SC port + RJ-45 Ethernet port

• Coverage Area
• Up to 20km (typical for SM fiber models)

• Dimension (L*W*H)
• 94mm x 70mm x 26mm

• Features
• Plug-and-play, LED indicators, auto negotiation, low power consumption

• Interface Type
• SC/UPC + RJ45

• Material
• Aluminum alloy housing

• Model
• Single Fiber SM

• Mounting Type
• Desktop, wall-mountable

• Operating Temperature
• 0C to 50C

• Power Supply
• External DC 5V/1A adapter

• Product Type
• Mbps Single Fiber SM Media Converter

• Range
• Up to 20km on single-mode fiber

• Shelf Life
• Not applicable (electronics)

• Size
• Compact

• Weight
• ~120g

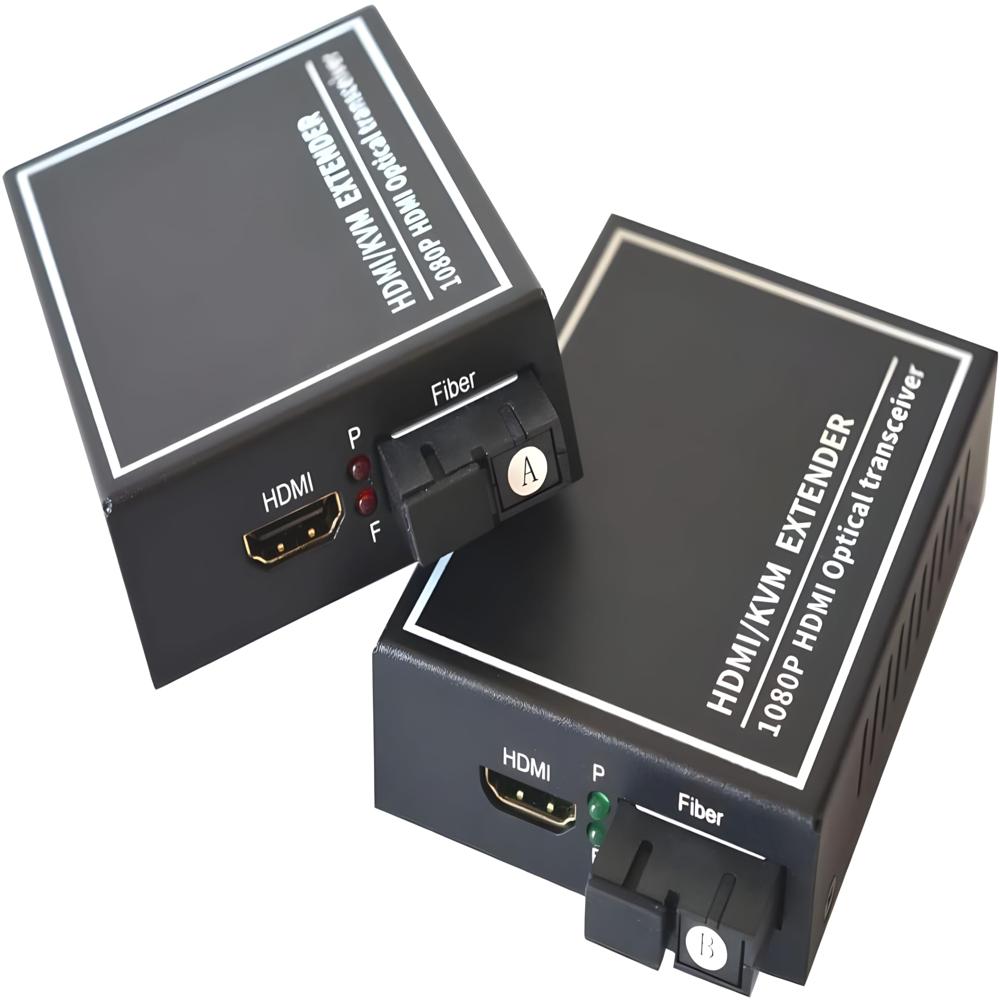

• Application
• audio visual system cctv surveillance

• Connectivity Type
• hdmi to fiber optic transmission

• Dimension (L*W*H)
• 3.7x 2.8x1.0 Inch (in)

• Features
• support video resolution up to 1080 p full HD

• Interface Type
• 1xhdmi input output

• Material
• metal body

• Model
• HDMI to fiber

• Mounting Type
• desktop wall mounted rack mounted

• Operating Temperature
• -10 to 60 Celsius (oC)

• Product Type
• fiber optic transmitters

• Range
• 20 kilometer

• Usage & Applications
• extend ultra high definition

• Weight
• 600 Grams (g)
