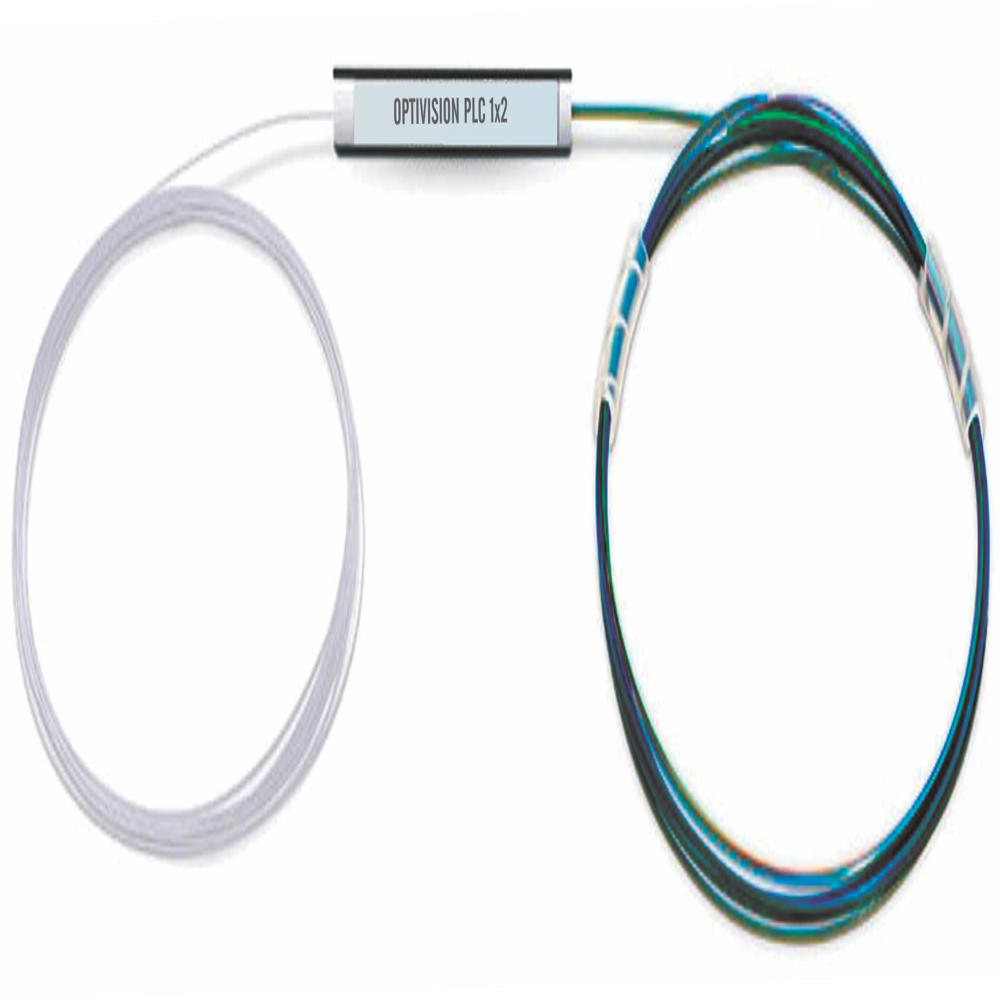

fiberonix optical splitter 1x2

Name: fiberonix optical splitter 1x2
Brand: Pacific Infra And Corporate Solutions
Price: 70.0 INR
Availability: InStock

Price 70.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

fiberonix optical splitter 1x2 Specification

Interface Type
Bare fiber or custom connectorized

Connectivity Type
Passive optical

Mounting Type
Rack or wall mountable with optional accessories

Features
Low insertion loss, high uniformity, excellent environmental stability, compact size, wide operating wavelength, plug-and-play installation

Operating Temperature
-40C to +85C

Size
Standard mini module

Frequency
Compatible with 1260~1650 nm wavelengths

Model
Fiberonix Optical Splitter 1x2

Shelf Life
>10 years groundwater conditions

Battery Backup
Not required (passive device)

Range
Optical signal range up to 20 km depending on application

Power Supply
No external power needed (passive device)

Product Type
Optical Fiber Splitter 1x2

Application
FTTH, FTTB, PON, LAN, CATV, fiber optic communication systems

Dimension (L*W*H)
60 mm x 7 mm x 4 mm (typical)

Material
ABS Plastic/Steel tube

Weight
~50 grams (approximate)

Capacity
1 input, 2 outputs

Coverage Area
Suitable for indoor/outdoor installations

Connector Type
SC, LC, FC, ST (optional/custom selected)

Insertion Loss
3.8 dB (standard for 1x2 models)

Storage Temperature
-40C to +85C

Package Type
Mini steel tube or ABS box

Splitting Ratio
50:50 (even split for 1x2 type)

Return Loss
55 dB

Cable Length
1 meter (customizable)

Fiber Type
G.652D / G.657A single mode

Polarization Dependent Loss
0.2 dB

About fiberonix optical splitter 1x2

Signal Splitting: A single incoming optical fiber signal enters one side of the steel tube and is split into two distinct output fibers on the other side.Custom Split Ratios: Available in symmetrical splits (50:50) or asymmetrical power distributions (e.g., 90:10, 80:20, 95:5) depending on network requirements.Color-Coded Pigtails: The pigtail legs are jacketed in distinct standard telecom colors (such as blue, orange, and white) for quick identification and error-free splicing.

High Performance and Versatility

The Fiberonix 1x2 Optical Splitter delivers low insertion loss and consistent splitting performance, making it a preferred choice for both residential and commercial fiber optic communication systems. Its miniaturized design, wide operating temperature range, and customizable connector options provide exceptional adaptability for diverse network setups. Suitable for rack or wall mounting, the splitter ensures straightforward integration even in constrained spaces.

Reliable, Long-Term Installation

Engineered for durability, the Fiberonix splitter features robust construction in an ABS plastic or steel tube package. Its passive design eliminates the need for external power supplies or batteries, reducing the risk of operational downtime. The splitter sustains reliable operation even in challenging environmental conditions, with a storage and operating temperature range of -40C to +85C and a certified shelf life of over a decade.

FAQ's of fiberonix optical splitter 1x2:

Q: How does the Fiberonix Optical Splitter 1x2 function within a fiber optic network?

A: The splitter passively divides an incoming single-mode optical signal into two separate output signals with an even 50:50 splitting ratio. This allows efficient signal distribution in FTTH, FTTB, LAN, CATV, and other communication systems without the need for external power.

Q: What are the installation options and connector types available for this splitter?

A: The device can be wall-mounted or rack-mounted using optional accessories. It comes with customizable SC, LC, FC, or ST connector options, or can be supplied with bare fiber for splicing based on your project's needs.

Q: When should I choose this 1x2 splitter for my application?

A: Select the Fiberonix 1x2 splitter when you need to distribute an optical signal to two endpoints with minimal insertion loss (3.8 dB) and high reliability. Its wide operating wavelength range and environmental stability make it suitable for most passive optical network setups.

Q: Where can the Fiberonix Optical Splitter 1x2 be installed?

A: Thanks to its compact and durable design, the splitter can be installed indoors or outdoors. Its robust steel tube or ABS enclosure protects it against harsh temperatures and environmental conditions, making it versatile for diverse deployment scenarios.

Q: What materials are used in this splitter and what are its durability features?

A: The splitter's enclosure is made from either high-quality ABS plastic or a steel tube, ensuring protection and durability. Designed to function in environments ranging from -40C to +85C, it offers a shelf life of over 10 years under standard groundwater conditions.

Q: How does using this splitter benefit my optical network?

A: By providing a reliable, maintenance-free way to distribute optical signals, the splitter reduces installation time and costs. Its low polarization dependent loss (0.2 dB) and high uniformity contribute to signal integrity, supporting robust and efficient network operation across applications.
