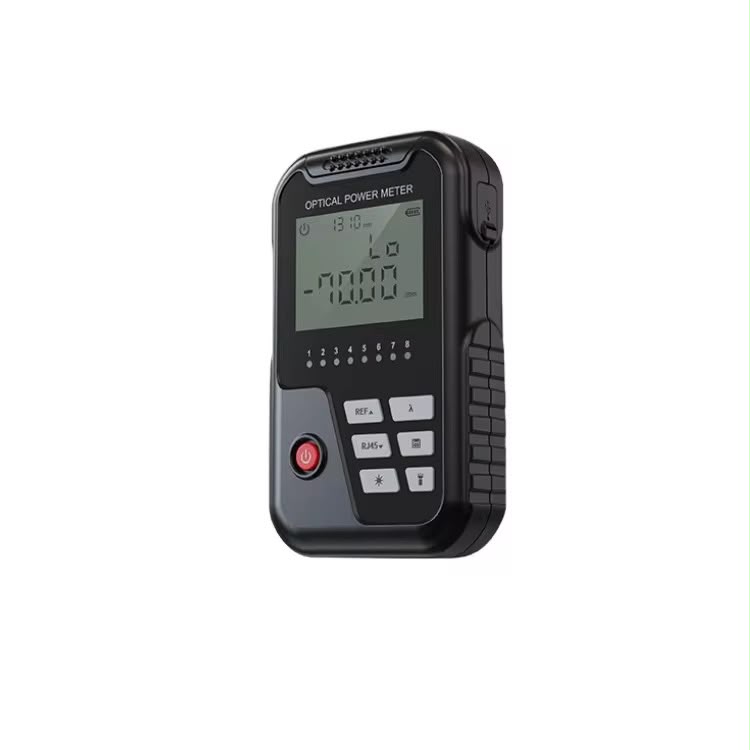

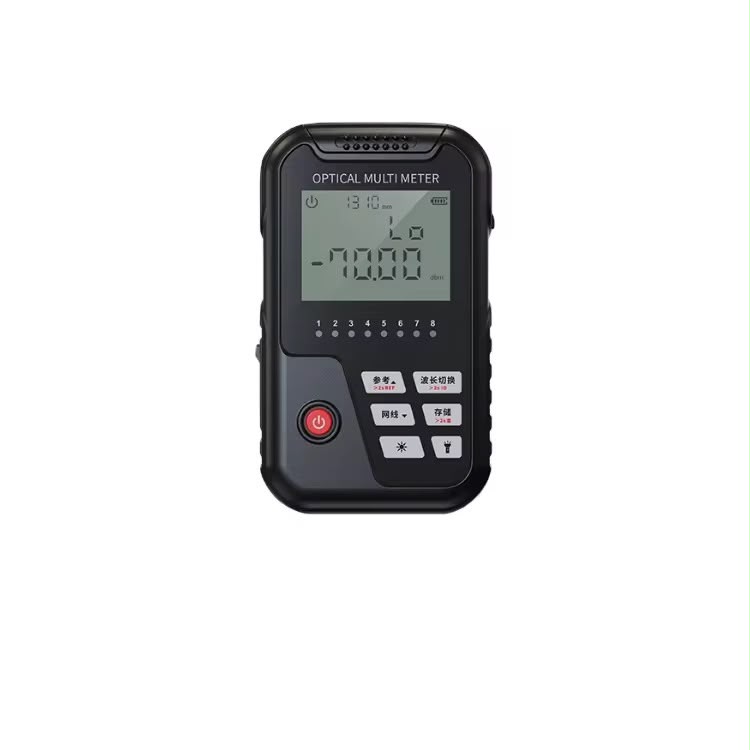

Fiberonix GLK270 4-in-1 Optical Multi Meter

Send Inquiry

Request To Call Back

Fiberonix GLK270 4-in-1 Optical Multi Meter

Name: Fiberonix GLK270 4-in-1 Optical Multi Meter
Brand: Pacific Infra And Corporate Solutions
Price: 1000.00 INR
Availability: InStock

Price 1000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fiberonix GLK270 4-in-1 Optical Multi Meter Specification

Features
4-in-1 test function, LCD backlight display, auto-off, memory storage

Function
Optical Power Meter, Visual Fault Locator (VFL), RJ45 Cable Tester, LED Flashlight

Power Source
Rechargeable Lithium Battery

Surface Finish
Matte Black

Voltage
3.7V Li-Ion rechargeable battery

Grip Type
Textured Non-Slip Grip

Tool Type
4-in-1 Optical Multi Meter

Material
ABS Plastic (Body)

Handle Material
Ergonomic ABS

Shape
Rectangular with rounded edges

Dimension (L*W*H)
Approx. 135mm x 70mm x 27mm

Connector Type
Universal FC/SC/ST Interchangeable Adapter

USB Charging Port
Micro USB

Power Measurement Range
-70 dBm to +6 dBm

Cable Tester Support
RJ45 (Ethernet cable continuity test)

Weight
Approx. 160g

Operating Temperature
-10C to 60C

Wavelength Range
800-1700 nm (Optical Power Meter)

Auto Power Off
Yes

Remote Kit
Included (for RJ45 Cable Testing)

Visual Fault Locator Output
10 mW (up to 10 km testing range)

Battery Capacity
2000 mAh (Rechargeable Li-ion)

Storage Temperature
-25C to 70C

Model
GLK270

Display
Large LCD with LED Backlight

Accessories Included
RJ45 Remote, USB Charging Cable, Wrist Strap, User Manual

About Fiberonix GLK270 4-in-1 Optical Multi Meter

Optical Power Meter (OPM): Capable of measuring precise absolute optical signal strength across multiple calibrated single-mode and multi-mode wavelengths (including 850, 1300, 1310, 1490, 1550, and 1625 nm). It usually offers a wide testing dynamic range from -70 to +10 dBm.
RJ45 Cable Tester: Below the screen is a sequential line mapping print labeled 1 through 8. This tracks pin continuity, cross-overs, or shorts on copper network patches.

All-in-One Testing Versatility

The GLK270 provides four essential testing functions in a single compact device: optical power measurement, fiber fault location, RJ45 cable continuity testing, and LED flashlight. Supporting a wide wavelength range (800-1700 nm) and universal adapters, it is ideal for various fiber and network testing scenarios.

User-Centric Features and Design

Engineered for maximum convenience, the GLK270 offers a large, backlit LCD, an intuitive user interface, and memory storage capabilities. The ergonomic ABS body is lightweight (approx. 160g) and features a textured, non-slip grip, making extended use comfortable and secure during troubleshooting or installations.

FAQ's of Fiberonix GLK270 4-in-1 Optical Multi Meter:

Q: How do I use the Fiberonix GLK270 to measure optical power?

A: To measure optical power, connect the optical fiber to the universal FC/SC/ST adapter, select the power meter function, and choose the desired wavelength. The large LCD display will show the power reading, ranging from -70 dBm to +6 dBm.

Q: What cables and connectors are supported by the GLK270 optical power meter and tester?

A: The GLK270 supports fiber optic cables with FC, SC, or ST connectors. For cable testing, it includes an RJ45 interface supporting Ethernet continuity checks with the supplied remote kit, making it versatile for both optical and network cable testing.

Q: Where can the Fiberonix GLK270 be used effectively?

A: This tool is suitable for use in data centers, telecom installations, field service, and network maintenance environments. Its portability and multi-functionality also make it ideal for on-site diagnostics and troubleshooting in varied locations.

Q: What is the process for testing RJ45 Ethernet cables?

A: Plug one end of the RJ45 cable into the main unit and the other end into the remote module. Activate the cable tester function; the meter will check for continuity and provide clear pass/fail indicators on the LCD screen.

Q: When should I recharge the Fiberonix GLK270, and how is it powered?

A: The device features a 2000 mAh rechargeable Li-ion battery (3.7V), offering extended operation. Recharge using the included Micro USB cable when battery indicators show low power or after prolonged use.

Q: What are the benefits of the GLK270's visual fault locator feature?

A: The visual fault locator (VFL) emits a visible 10 mW red laser, pinpointing breaks, bends, or faults in fiber cables up to 10 km. This enables quick fault isolation, reducing diagnostic time and maintenance costs.
